Lifting Products Grade 100 Lifting Products Grade 100

TWN 1820
XL-LOK Connecting Links

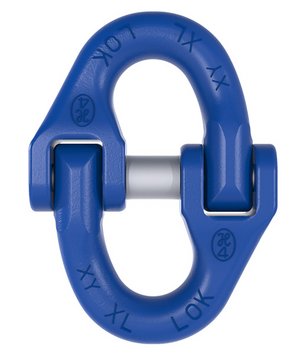

The grade 100 XL-LOK connecting links TWN 1820 are used to connect lifting chains with sling components to assemble chain slings and lashing chains.

The manufacturing and testing requirements comply with the DIN EN 1677-1, under consideration of grade 100 load capacities.

XL-LOK Connecting Links

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.


[kg]

CAD


STEP

CAD


IGES

a

b

c

e

f

g

6-10

F30807

1.40

61

12

38

45

8

14

0.07

Download

Download

7-10

F308090

1.90

71

14

47

50

9

16

0.14

Download

Download

8-10

F30817

2.50

85

16

55

62

10

19

0.20

Download

Download

10-10

F30827

4.00

97

18

66

72

13

24

0.35

Download

Download

13-10

F30837

6.70

125

23

82

87

17

28

0.74

Download

Download

16-10

F30847

10.00

146

32

109

105

21

34

1.20

Download

Download

20-10

F308570

16.00

178

37

144

128

25

45

2.80

Download

Download

22-10

F308670

19.00

196

40

150

140

28

45

3.50

Download

Download

26-10

F308770

26.50

232

48

178

166

33

56

5.80

Download

Download

32-10

F308870

40.00

286

58

220

204

40

70

10.90

Download

Download

Inquire about product >
