TWN 1819

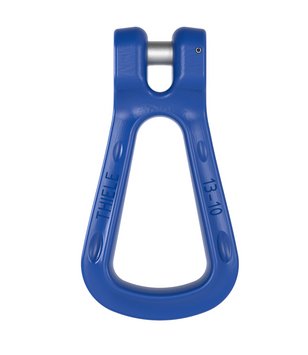

Clevis Master Links

The grade 100 clevis master links TWN 1819 are predominantely used to assemble basket slings for bundling of loads.

The manufacturing and testing requirements comply with the DIN EN 1677-1, under consideration of grade 100 load capacities.

Clevis Master Links

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

a

b

c

e

f

g

h

13-10

F31025

6.70

189

102

32

142.5

60

110

22

1.11

Download

Download
