The grade 100 ring shackles TWN 1812 are used to connect chains to sling components to assemble chain slings.
The manufacturing and testing requirements are based on DIN EN 1677-1, under consideration of grade 100 load capacities.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 100

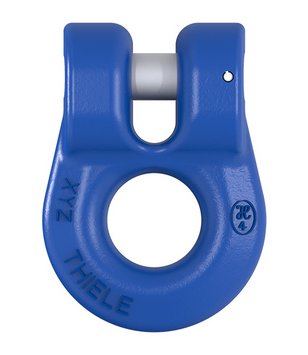

TWN 1812
Ring Shackles
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||
e | d1 | d2 | b | ||||||
6-10 | F31704 | 1.40 | 31 | 17 | 39 | 8 | 0.10 | ||
8-10 | F31714 | 2.50 | 37 | 21 | 50 | 11 | 0.23 | ||
10-10 | F31724 | 4.00 | 46 | 26 | 62 | 14 | 0.48 | ||
13-10 | F31734 | 6.70 | 59 | 33 | 79 | 18 | 0.85 | ||
16-10 | F31744 | 10.00 | 76 | 42 | 100 | 23 | 1.59 | ||
22-10 | F31764 | 19.00 | 100 | 57 | 135 | 30.5 | 3.93 | ||
