Lifting Products Grade 80 Lifting Products Grade 80

TWN 0855

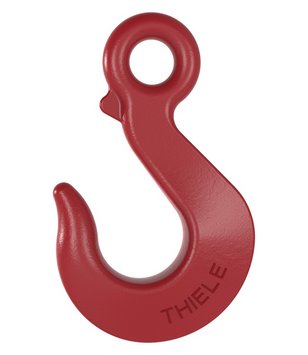

Eye Sling Hooks

The grade 80 eye sling hooks TWN 0855 are used to assemble chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.

The manufacturing and testing requirements comply with the DIN EN 1677-2.

Eye Sling Hooks

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

e

d1

g

h

c

d2

36-8

Z04079

40.00

388

72

109

103

78

44.5

31.50

Download

Download

40-8

Z04083

50.00

442

84

124

116

89

50.5

46.00

Download

Download

45-8

Z04080

63.00

494

90

138

130

99

56

63.00

Download

Download

50-8

Z04081

80.00

610

102

155

145

110

63

80.00

Download

Download
