Lifting Products Grade 80

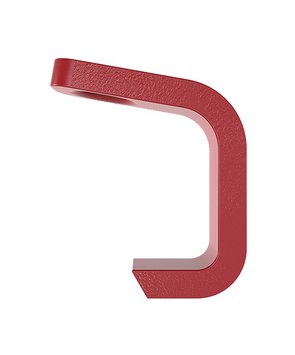

The grade 80 plate hooks with eyelet TWN 0873 are used as end fittings in chain slings for the horizontal transport of thick-walled sheet metals in steel constructions. The eyelet allows the chain to be passed through. The max. inclination angle is β = 30°.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
Trade Size | Article-No. | Working 15° < β ≤ 30° [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | ||||
b | c | d | f | h | ||||||
6-8 | F35600 | 1.60 | 90 | 60 | 38 | 60 | 20 | 2.40 | ||
8-8 | F35601 | 2.80 | 90 | 90 | 42 | 70 | 25 | 3.50 | ||
10-8 | F35602 | 4.25 | 140 | 95 | 50 | 80 | 30 | 8.00 | ||
13-8 | F35603 | 7.50 | 145 | 100 | 65 | 90 | 35 | 12.52 | ||
16-8 | F35604 | 11.20 | 155 | 120 | 78 | 110 | 45 | 22.00 | ||
20-8 | F35605 | 17.00 | 175 | 130 | 92 | 130 | 55 | 25.00 | ||
22-8 | F35606 | 21.20 | 205 | 135 | 100 | 140 | 60 | 34.00 | ||
26-8 | F35607 | 30.00 | 230 | 145 | 118 | 160 | 70 | 50.00 | ||
32-8 | F35608 | 45.00 | 255 | 160 | 142 | 190 | 85 | 69.00 | ||
