Single Stand Flight Bar

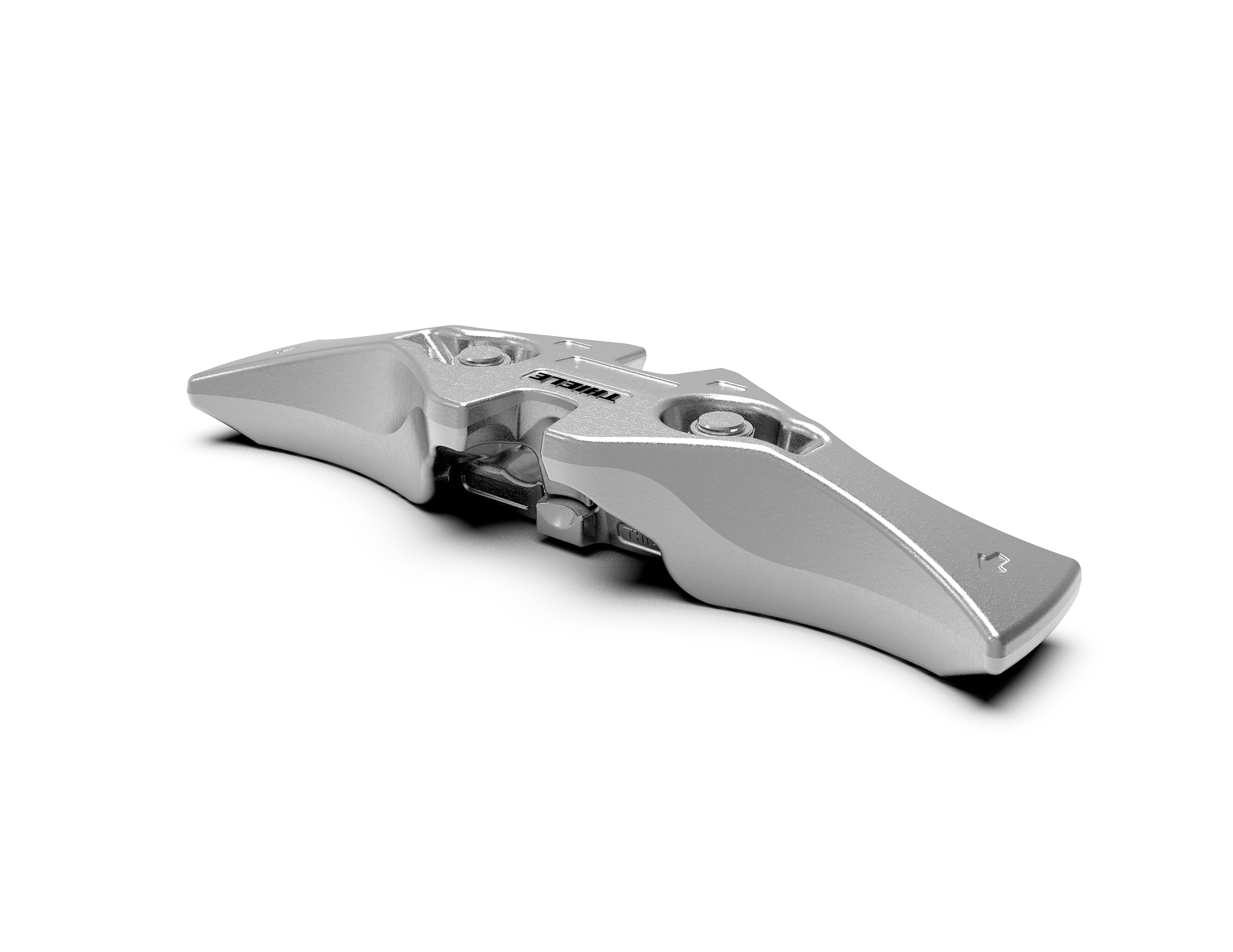

THIELE Single Stand Flight Bar

THIELE Single Strand Flight Bars are designed for single-strand chain conveyors. The accurately forged and calibrated chain recess ensures a smooth chain run and prevents the flight bar from wandering out of the pan profile.

Properties

Trade Size d x t	Description	Article-No. complete	Dimensions						Weight app. Kg
Trade Size d x t	Description	Article-No. complete	Length [mm]	h [mm]	c [mm]	d [mm]	α [°]	ß [°]	Weight app. Kg
26x92	EKF2-26	F243600	576	90	40	14	30	20	16.1
30x108	EKF3-30	F24516	676	96	39	16	30	20	22.1
34x126	EKF34/776	F24536	772	105	52	18	34	20	33.3
34x126	EKF34/676	F24537	676	105	47	14	30	20	29.1
42x146	EKF42/674	F245340	674	110	51	21	30	18	34.3
48x152	EKF48x152/914	F24533	914	122	82	35	42	12	59.7

Inquire about product >
