TWN 0111

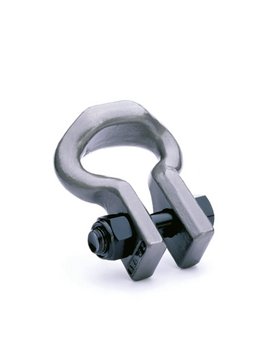

Chain Brackets

The chain brackets TWN 0111 are used to connect round steel chains in loader wagons and dung spreaders and enable flight bars to be attached.

The manufacturing and testing requirements are based on the specifications of DIN 22253.

Properties

Dimension [mm]	Article-No.	Breaking Force [kN] min.]	Weight app. [kg]
14 x 50	F25006	190	0.675
Note: With screw M16 x 65 as per DIN 931 ST 8.8 and nut as per DIN 985-1610, suitable for chain as per DIN 22252

Dimension

[mm]

Article-No.

Breaking Force

[kN] min.]

Weight
app.

[kg]

14 x 50

F25006

190

0.675

Note: With screw M16 x 65 as per DIN 931 ST 8.8 and nut as per DIN 985-1610, suitable for chain as per DIN 22252
